The Uniden (u)BCD436HP/PT and (u)BCD536HP scanner comes with software but the included software has lots of limitations and the favorites editor to create new systems in Sentinel is too limited. ARC536 solves this problem with the only true excel style editor in the world!

Try the new V2.3 with SDS full VC support * !

ARC536PRO Manual addendum

• Edit multiple HPD files at the same time!
• True Excel style editor with cut/copy/paste options
• Add any frequency or talkgroup that is not in the built-in database
• Add/Modify a control channel frequency
• Add a trunk system that is not in the built-in database
• Add Nascar and other race frequencies
• Add Service Searches to your (u)BCDx36HP (many Service Search files are included with ARC536)
• Free Radioreference conventional and trunk system imports thru Sentinel
• Easily share you favorite hpd files with other BCD436/BCD536/HomePatrol users.
• Change Alpha tags
• Change or add subtones
• Add Airband, CB, Marine, Railroad, FRS and GMRS frequencies
• Change the service type of frequencies and/or talkgroups
• Search a frequency range
• Duplicate finder for frequencies and talkgroups
• Re-order or Rename favorite lists
• Only homepatrol software with built-in GPS latitude/Longitude/zipcode search function
• Map functions for lat/long/zip search function
• Edit multiple systems
• 'Bulk' edit channel parameters
• 'Bulk' Edit Database files so you can change delay and alert setting in the database.

  Extra options in ARC536PRO (NOT supported by UBCD436HP/UBCD536PT!) :

• Full Virtual Control of BCD436HP, BCD536HP, SDS100(E), SDS200(E), USDS100 and UBC3600XLT
• built-in RadioReference frequency search
• Scan and search buttons
• History Logging
• Log close call hits
• Log FTO hits
• 'No loss' Audio Recording!
• enables the analyze options in your BCD536HP

Other features in ARC536:
• ARC536 includes the most versatile and most feature rich editor available on the market.
• ARC536 combines the best of 2 worlds! With ARC536 you can directly access (*) the RadioReference.com Database and import trunk and conventional systems directly into your BCDx36HP / UBCDx36PT scanner.
• ARC536PRO has a Built-in RadioReference frequency search (requires additional subscription)
• Handy tools menu
• Copy/paste departments between systems, building new favorite systems was never this easy!
• ARC536 automatically detects your BCDx36HP scanner and creates the favorites files for you!
• 'ARC536' contains Uniden proprietary and/or copyrighted information. Used under license.
• Dealers/affiliates are welcome!
• Lifetime free updates for registered users

ARC536 is not a replacement for the Uniden Sentinel software. Sentinel is used to update firmware and the database in the HP-1. ARC536 is the preferred software tool to manage your favorites. ARC536PRO also adds virtual control and logging!

System requirements:

• Windows 7/8/10/11
• minimum 1024x800 video, 512 RAM.
• Uniden Sentinel software
• Uniden BCD536HP, BCD436HP, UBCD536PT, UBCD436PT, SDS100 (/E), SDS200 (/E) , USDS100 or UBCD3600XLT using the USB cable (supplied with scanner).
• Virtual control (ARC536PRO only) may require an additional connection to the GPS/serial port. See this document for more information.
• ARC536PRO audio recording requires a 1/8" audio cable.
• * the UBCD436PT and UBCD536PT does NOT support remote control.

Screenshots:

ARC536PRO Virtual Control for SDS series:

ARC536PRO Virtual Control:

ARC536 bulk database editor:

ARC536 Latitude/Longitude search option with map:

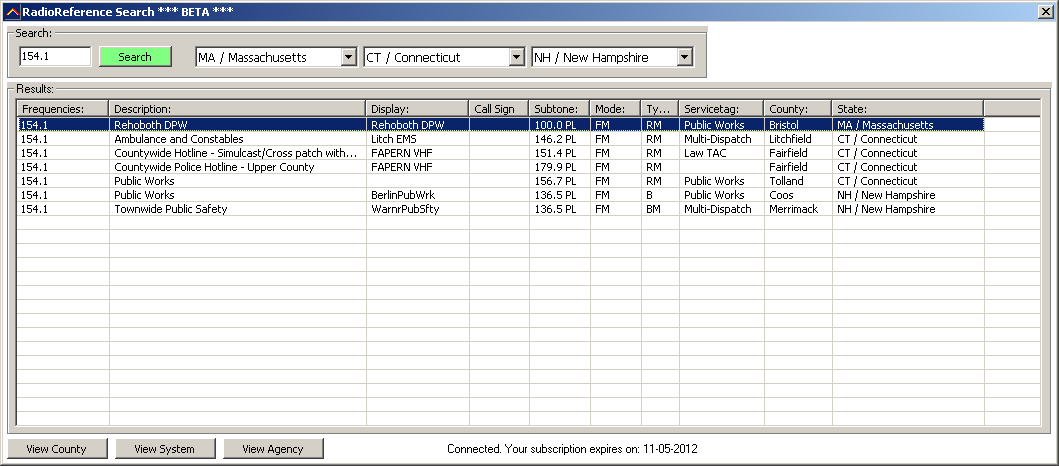

ARC536PRO RadioReference database search:
